| Bar Bending & Cutting Machines |

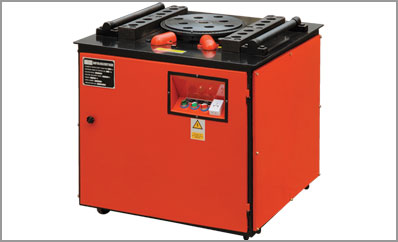

Rebar Bending Machine with limit switches &
heavy duty brake crane motor |
| Click here to view Bar Bending Working Video |
| Click here to view Bar Cutter 25mm Working Video |
| Click here to view Bar Cutter 8mm Working Video |
| |
| We have launched an exciting new range of Bar Bending and Bar Cutting machines which help make your work faster and much more efficient. Here are some of the details- |
| |
 |
 |
| |
|

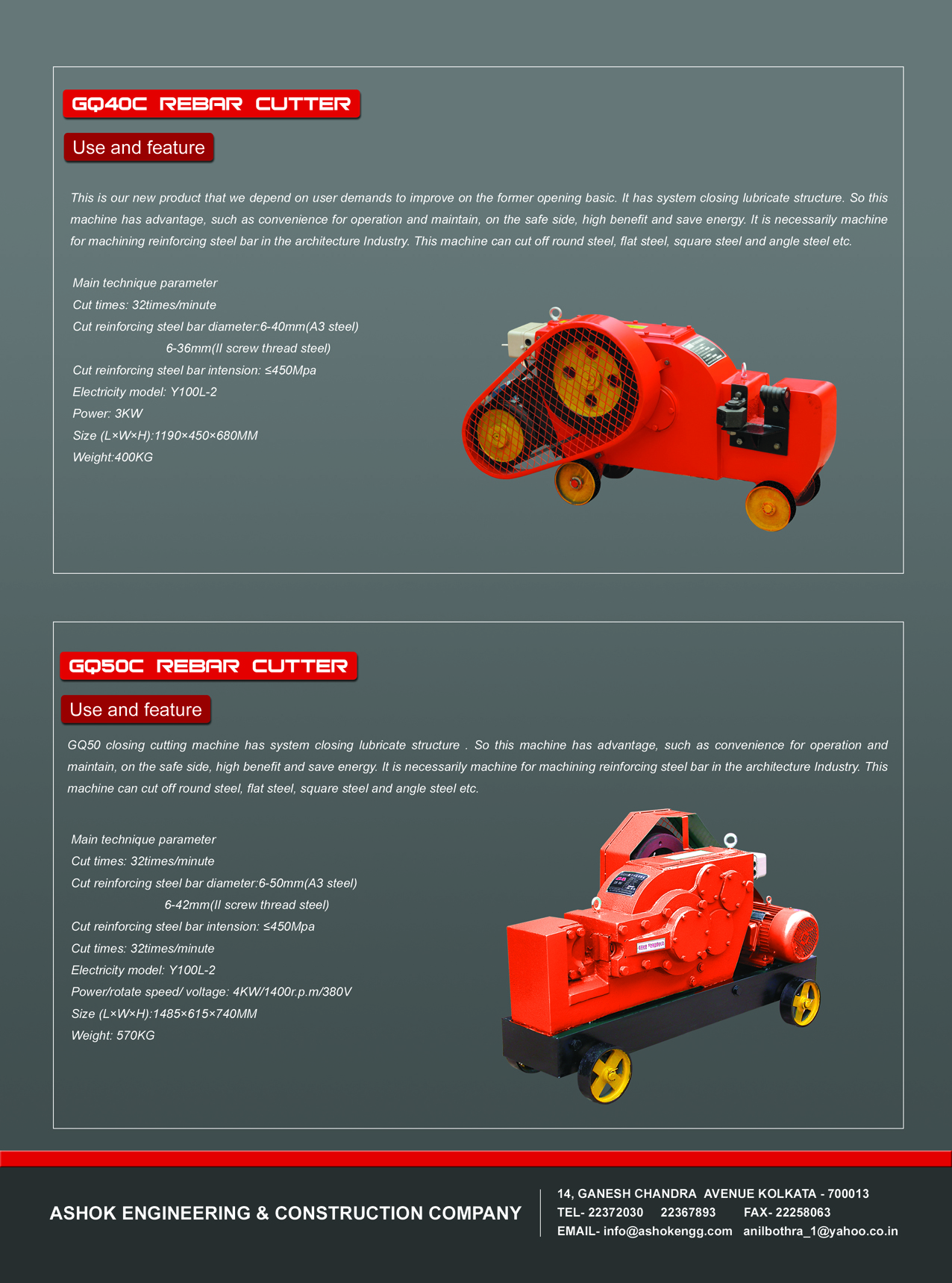

| Bar Cutters |
 |
 |
Our bar cutters work on shear cutting technique and have proved to be much more cost efficient than other cutters. |
|
36 cuts per minutes can be easily achieved making the work tremendously fast and fully automatic. |
|
Unlike the disc cutters, the scrap metal left out is not in powder form and thus has a benifitting resale value. |
|
| |
| |
|
| Specifications of Bar Cutting Machine: |
|
| Model |
GQ40C |
GQ50C |
| Diameter of Cutting Range (mm) |
δ B≤ 450 mpa |
Ø 6~40 |
Ø 6~50 |
| δ B≤ 510 mpa |
Ø 6~28 |
Ø 6~40 |
| δ B≤ 570 mpa |
Ø 6~25 |
Ø 6~35 |
| Times of Cutting per Minute |
31 |
29 |
| Stroke of Blade (mm) |
34 |
44 |
| Space of Blades (mm) |
35~42 |
44~54 |
| Power (KW) |
3 |
4 |
| Speed (r.p.m) |
2880 |
2890 |
| Voltage (V) |
380, 3-phase |
380, 3-phase |
| Overall Size (LxWxH) (mm) |
1080x433x795 |
1240x550x1160 |
| Weight (Kg) |
560 |
820 |
| All the specifications above is only for reference, which will be changed without notice |
|
|
| Bar Benders |
|
|
The bar benders bend the bars in a much easier and more efficient manner by automatically bending bars at the push of button. |
|
2-3 bars of less size can be bent at the same time. |
|
Immense amount of time can be saved. |
|
The labours don’t have to manually bend bars, thus reducing fatigue at site. |
|
The saved labour energy can be used elsewhere to have better work efficiency. |
|
| |
| Specifications of Bar Bending Machine: |
|
| Model |
GW40Z |
GW50Z |
| Diameter of Cutting Range (mm) |
δ B≤ 450 mpa |
Ø 6~40 |
Ø 6~50 |
| δ B≤ 510 mpa |
Ø 6~32 |
Ø 6~40 |
| δ B≤ 570 mpa |
Ø 6~28 |
Ø 6~35 |
| Speed of Turning Plate (r.p.m) |
3.7 |
6 |
| 7.2 |
| 14 |
| Power (KW) |
3 |
4 |
| Speed (r.p.m) |
1430 |
1440 |
| Voltage (V) |
380, 3-phase |
380, 3-phase |
| Overall Size (LxWxH) (mm) |
774x898x728 |
900x670x815 |
| Weight (Kg) |
448 |
600 |
| All the specifications above is only for reference, which will be changed without notice |
|
| |
|
|
| |
|
| |
