| Piling Winches and Accesories |
| Bored Piling Winch |
| Bored Piling Winch are famous for its |
 |
Unique design, trouble free service & Roboust
Construction. |
|
Cone Clutch for Easy Operation |
|
Heat Treated M.S. Pinion for Smooth functioning. |
|
Carbon Steel Structure |
|
Heavy Duty Bearing |
|
All Controls within Reach of Operator. |
|
Power – Electric Motor/Diesel Engine. |
|
Safety Ratchet Arrangement |
|
|
| |
 |
 |
| Single Drum Bored Piling Winch |
Double Drum Bored Piling Winch |
| Capacity: 7.5 Ton, 5 Ton, 3 Ton, 2 Ton |
|
|
|
| |

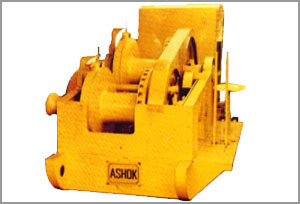

| Double Drum Winch |
| It is suitable for |
|
Well sinking, Pile Driving, Erection and Hoisting and suitable for working with Grab Buckets or Drop hammer. |
|
|
Rolled Steel welded construction. Drums work independently. |
|
Expansion type rotary clutch having positive action. |
|
Carbon steel shaft. |
|
Power – Diesel Engine, (Electric Motor) |
|
Self Aligning Heavy Duty Bearings. |
|
All controls within reach of operator |
|
| |

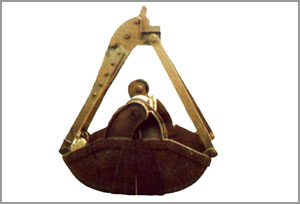

| Grab Bucket |
|
Forged Teeth bolted with cutting edges. |
|
|
M.S. welded cum bolted construction. |
|
M.S. Deep Groove pulley Carton steel shaft. |
|
Capacity – 1.5 cu. Mtr., 1 cu. Mtr., 1 cu. Yd., 0.75 cu. Yd., 0.50 cu. Yd. |
|
| |

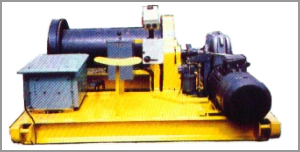

| Reversible Winch |
|
SKID Frame Type – Frame made out of heavy steel sections. |
|
M.S. Gear & Pinion. |
|
Reduction through Gear Box and Bull Gear & Pinion. |
|
Carbon steel shaft. |
|
A Safety Ratchet System. |
|
Variable Speed Motor. |
|
M.S. Drums. |
|
Teeth Cut on Gear Hobbing Machine for Perfect Pitch. |
|
Hydraulic Thrustor Break. |
|
Manual Break. |
|
All controls within reach of operator. |
|
Load & Speed as per Requirement of the Customer |
|
| |
|
| |
| |
 |
| Double Drum Winch |
| |
| |
 |
| Grab Bucket |
| |
 |
| Reversible Winch |
| |
 |
|
|

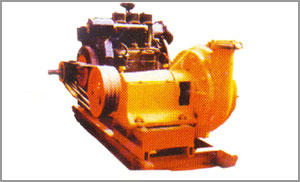

| Centrifugal Pump |
|
5” x 4” Centrifugal Horizontal Pump mounted on Trolley/Skid Frame. |
|
Material of construction |
|
Liquid or Slurry to be pumped: Bentonite Slurry |
|
Suction Cover & Casing: C.I. Rubber lined |
|
Discharge: 500 GPM |
|
Impeller: C.I. Rubber lined |
|
Total Head: 50’ ft. |
|
Back Plate: C.I. Rubber lined |
|
Size: 4” Discharge, 5” Suction |
|
All the Inner Parts are given a lining of rubber for more life of the pump |
|
Pump Speed: 820 RPM |
|
Due to High Discharge Bentonite can be circulated to 4 piles at a time |
|
| |
| Bored Piling Equipment Accessories |
 |
 |
 |
 |
 |
| Chisel |
Swivel |
DMC Pipe |
5'x4" Centrifugal Pump for
Bentonite circulation |
| |
|
|
|
 |
 |
 |
 |
| Trimme Pipe |
Bailor |
Trimme Hopper |
Trimme Head | DMC Head |
|
| |
