| Pneumatic Guniting Shotcreting Machine & Concrete placer |
| Click on the link to view details |
 |
|
| |

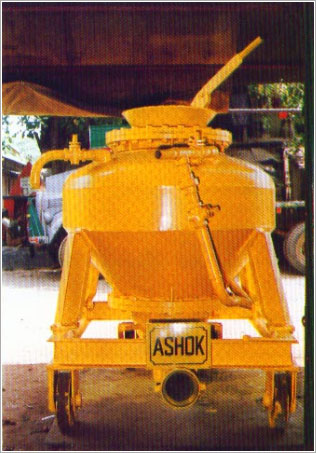

| "ASHOK" Pneumatic Concrete Placer : Portable or Stationary type, capable of throwing concrete upto 100 mtr. horizontally and 30 mtr. vertically at an air pressure of 6 to 7 kg/cm2 (90-100 ps) complete with air lines. valves and pressure gauge - with an outlet of 6* (150 mm) dia for concrete discharge with quick action coupling. The placer can be supplied either on a Fixed frame, on wheels for rail 24", 36" or 42" gauge. on solid steel wheels/castor wheels or Rubber tyred wheels. |
| |
 |
| Capacity |
|
 |
¼ cu. yd. |
(7 cft) |
|
½ cu. yd. |
(13.5 cft) |
|
2/4 cu. yd. |
(20 cft) |
|
1 cu. yd. |
(27 cft) |
|
| |
| Optional Accessories |
|
|
M.s.Steel pipe 150 mm dia with quick action coupling in length of 6 mtr., 3 mtr., 1 mtr. |
|
Large Radius bends of 90", 45", 30" |
|
Rubber Rings for quick action coupling |
|
Air receiver Tank |
|
Quick action coupling |
|
Flexible Rubber Hose pipe with both end flange connection |
|
Discharge Box |
|
Automatic Loader |
|
|
|
| |
| Uses |
|
|
Tunnel Linings |
|
Cooling Towers |
|
Piers |
|
River Valley Projects |
|
Silos |
|
Repairing of Arch Bridges and other such structures |
|
Chimneys |
|
|
|
|
|
| |
| "ASHOK" Pneumatic Concrete Placer are robustly built , simple in working, stronger, Durable and has been improved with the aid of new idea suggestions by its actual user and our research work and engineering skill. |
| |
| PERFORMANCE CHART OF |
|
| "ASHOK" Pneumatic Concrete Placer |
|
| Model |
¼ cu. yd. |
½ cu. yd. |
3/4 cu. yd |
1 cu. yd. |
| Capacity in ltrs. |
200 ltrs |
400 ltrs |
600 ltrs |
760 ltrs |
| Capacity in cu. ft. |
7 cu. ft. |
13.5 cu. ft. |
20 cu. ft. |
27 cu. ft |
| Rated Hourly Capacity in m3 |
11 M3 |
23 M3 |
34 M3 |
44 M3 |
| Maximum size of Aggregate in mm |
40 |
45 |
45 |
45 |
| Air Receiver Tank Capacity required in m3 |
1.1 |
1.7 |
2 |
2.3 |
| Air Compressor Output requirement in m3/min. |
1.7 M3/minute |
2.55 M3/minute |
3 M3/minute |
3.4 M3/minute |
|
| |
| Note : Actual Hourly concrete output depends on the amount of concrete delivered to the placer and horizontal & vertical length of delivery pipe to forms. Records show that 50% higher output than above rated capacity can be obtained. Normally the placer transports concrete at a speed of 1.83 to 3 mtr. / sec. upto distance of 15 mtr. vertical or 55 mtr. horizontal. |
| |
